Magnetic Buzzer HNB-09A05 9x5.5mm 5V DC 82dB
Magnetic Buzzer HNB-09A05 9x5.5mm 5V DC 82dB
Magnetic Buzzer HNB-09A05 9x5.5mm 5V DC 82dB
Magnetic Buzzer HNB-09A05 9x5.5mm 5V DC 82dB
Magnetic Buzzer HNB-09A05 9x5.5mm 5V DC 82dB
Magnetic Buzzer HNB-09A05 9x5.5mm 5V DC 82dB
Magnetic Buzzer HNB-09A05 9x5.5mm 5V DC 82dB

Magnetic Buzzer HNB-09A05 9x5.5mm 5V DC 82dB

Get Latest Price
Payment Type:L/C,T/T,D/P,Paypal
Incoterm:FOB,CIF,EXW
Min. Order:1000 Piece/Pieces
Transportation:Ocean,Air
Port:NINGBO
Product Attributes

Model No.HNB-09A05

BrandHNDZ

CategoryBuzzer

CertificationISO9001

Packaging & Delivery
Selling Units : Piece/Pieces
Package Type : Tray
Download :
Product Description

Magnetic Buzzer HNB-09A05 9x5.5mm 5V DC 82dB

Our products are widely used in home appliances, cars, electric bicycles, medical devices, cordless phones, computers, alarm systems. We are able to make 7 to 9 million pieces monthly based on our professional engineers, advanced audio analyzers, ISO 9001, ISO 140001 and QS 9000 certifications.

The Magnetic Buzzer Self-drive Type offer optimal sound and performance for all types of audible alert and identification. Our magnetic Buzzer solutions are offered with various mounting options. We also provide you with a washable version for your preferred soldering method. This buzzer type has a low operating voltage ranging from 1.5 – 12V+. Our magnetic buzzers are desirable for applications requiring a lower sound pressure level (SPL) and frequency.

From product designing, purchasing and testing, every step is controlled strictly by our QC staffs in order to make sure the perfect quality of our products. Currently, over 70% products are exported to US. South East Asia and Europe.

With professional skills, enthusiasm and ambition, we are looking forward to corporate with you. Welcome to Huawha!

Specification

Type

Spec

1

Rated voltage

50VDC

2

Operation voltage

4~7VDC

3

Sound Pressure Level=SPL

Min 83dB

4

current

Max  30mA

5

Oscillation frequency

2700±300Hz

6

Operating Temperature

-20+70

7

Storage temperature

-30+80

8

Externals size mm

Φ9*H5.5

9

Mass

1g

10

Housing Material

PBT

11
Envionmental Protection Regulation
            RoHS



Dimension

 HNB-09A05_dim Self-drive type Electro-magnetic Buzzer 83dB 5V DC

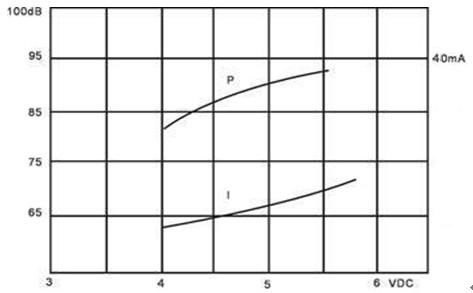

Frequency Curve

HNB-09A05_dim Self-drive type Electro-magnetic Buzzer 83dB 5V DC
