7.5x7.5x2.5mm SMD Magnetic Transducer Buzzer 3.6V
Our products are widely used in home appliances, cars, electric bicycles, medical devices, cordless phones, computers, alarm systems. We are able to make 7 to 9 million pieces monthly based on our professional engineers, advanced audio analyzers, ISO 9001, ISO 140001 and QS 9000 certifications.
SMD Magnetic Buzzers are generally smaller than pin type Magnetic Buzzers, with width as low as 4 mm to 9 mm. They are optimized for small devices such as blood glucose meter, clinical/forehead thermometers, photoflashes for cameras, and portable terminals.
From product designing, purchasing and testing, every step is controlled strictly by our QC staffs in order to make sure the perfect quality of our products. Currently, over 70% products are exported to US. South East Asia and Europe.
With professional skills, enthusiasm and ambition, we are looking forward to corporate with you. Welcome to Huawha!
Specification
| Type | Spec |
| 1 | Rated voltage | 3.6Vo-p |
| 2 | Operation voltage | 2.5~4.5Vo-p |
| 3 | Sound Pressure Level=SPL | Min 85dB |
| 4 | current | Max 70mA |
| 5 | Oscillation frequency | 2700Hz |
| 6 | Operating Temperature | -20～+70℃ |
| 7 | Storage temperature | -30～+85℃ |
| 8 | Externals size （mm） | 7.5*7.5*H2.5 |
| 9 | Mass | 1g |
| 10 | Housing Material | LCP |
| 11 | Environmental Protection Regulation | RoHS |
Dimension

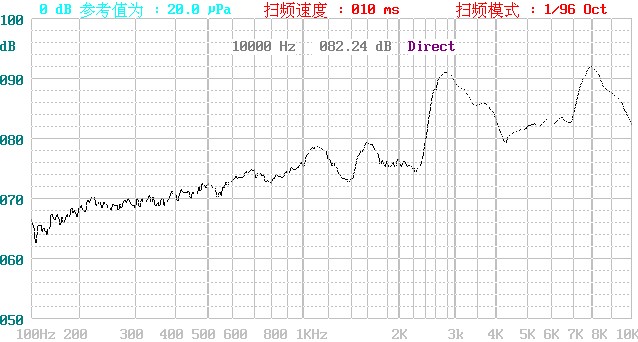

Frequency Curve
Looking for ideal Waterproof AC Passive Magnetic SMD Alarm Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 85db 70mA 2700Hz
Magnetic Buzzer are quality guaranteed. We are China Origin Factory of Side Sound Buzzer Medical Devices. If you have any question, please feel free to contact us.
Product Categories : Buzzer > SMD Magnetic Buzzer
