SMD Magenetic Buzzer 3.6V 4000Hz
SMD Magenetic Buzzer 3.6V 4000Hz
SMD Magenetic Buzzer 3.6V 4000Hz
SMD Magenetic Buzzer 3.6V 4000Hz
SMD Magenetic Buzzer 3.6V 4000Hz
SMD Magenetic Buzzer 3.6V 4000Hz
SMD Magenetic Buzzer 3.6V 4000Hz

SMD Magenetic Buzzer 3.6V 4000Hz

Get Latest Price
Payment Type:L/C,T/T,D/P,Paypal
Incoterm:FOB,CIF,EXW
Min. Order:1000 Piece/Pieces
Transportation:Ocean,Land,Air
Port:SHANGHAI,NINGBO
Product Attributes

Model No.MLT-5020

BrandHNDZ

CategoryBuzzer

CertificationISO9001

Packaging & Delivery
Selling Units : Piece/Pieces
Package Type : ROLL
Product Description

5x5x2mm SMD Magnetic Transducer Buzzer 3V 4000Hz

Jiangsu Huawha Electronics Co., Ltd. was founded in 1999 and has devoted in the acoustic field for more than 20 years. There are about 200-300 employees including more than 20 professional and experienced engineers. The company is a reliable, well-developed and professional manufacturer of electronic acoustic products, providing electromagnetic buzzer, Smd Piezo Buzzer, Speaker, Mylar Speaker, Mechanical Buzzer, alarms and so on.

SMD Magnetic Buzzers are generally smaller than pin type Magnetic Buzzers, with width as low as 4 mm to 9 mm. They are optimized for small devices such as blood glucose meter, clinical/forehead thermometers, photoflashes for cameras, and portable terminals.

With professional skills, enthusiasm and ambition, we are looking forward to corporate with you. Welcome to Huawha!

Specification

Type

Spec

1

Rated voltage

3.0Vo-p

2

Operation voltage

2-4Vo-p

3

Sound Pressure Level=SPL

Min 75dB

4

current

Max  100mA

5

Oscillation frequency

4000Hz

6

Operating Temperature

-20+70

7

Storage temperature

-30+85

8

Externals size mm

5.2*5.2*H2

9

Mass

0.5g

10

Housing Material

LCP

11

Environmental Protection Regulation

RoHS



Dimension

 5x5x2mm SMD Magnetic Trasducer Buzzer 3V 4000Hz

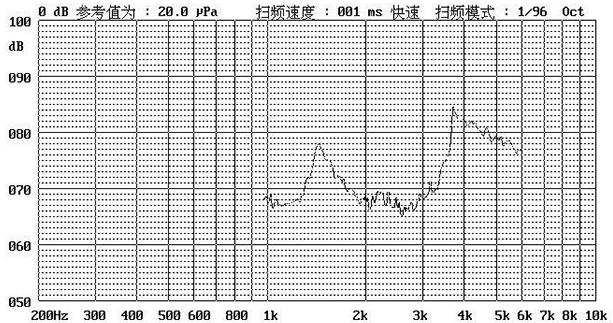

Frequency Curve

100mA 75db External-Drive Magnetic Buzzer Curve
